Experiment: snow

This might look simple but it is actually a simple implementation of a more complex solution. Normally particles are deterministic. This means a position of a single particle in time can only be determined by extrapolating from it’s previous position.
The particles you see here are procedural: their position in time is predetermined plus their number is infinite.
You can check this by dragging left or right which also reverses time. The particles will go in exact reverse, even the ones that were already off-screen.

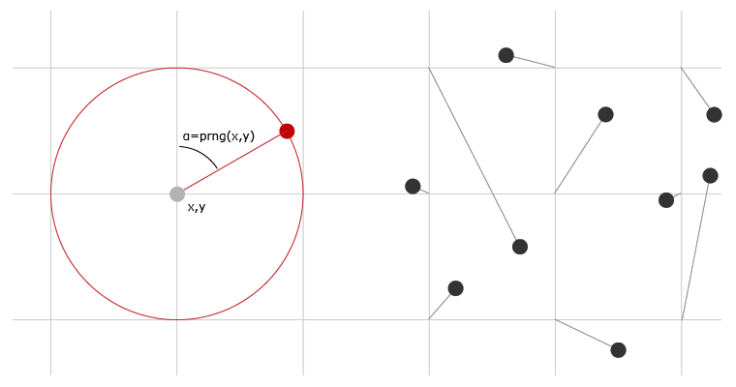

The technique used for particle scattering is relatively simple. The starting point is a grid. If we take a grid size of ten pixels in a hundred pixel field the number of particles will be around 10×10=100 (or possibly 11×11=121 if you round the edges correctly). The x/y position of each gridpoint will act as seed for a psuedo random number generator. The result is used for offsetting the original point.

In the example I used the prng result as a directional offset: random radians with a fixed radius. You could use the same prng result for a random radius.

For speed optimisation you can make a lookup table for the sine and cosine calculations. The optimal size of the table is 2*Pi*r.

Instead of an actual prng I used Perlin noise, which makes the movement possible (and takes multiple arguments). If you need static particle scattering it will be faster to use a regular prng. But you’ll have to turn the x and y values into a single seed without mirroring the field diagonally (for instance: x+1E6*y).

Lastly we have to enlarge the gridfield a bit to accommodate for the offset radius. Normally a 100×100 field with a gridsize of 10 wil hold a maximum of 121 points. But with an offset radius points that are normally outside the viewport could suddenly appear inside. So we also enlarge the grid with the offset radius.
