Moire and glitches

Sometimes you assume the wrong thing your entire life. I always thought Moiré was some old french dude who studied interference patterns. It is in fact the name of a type of silk weave that exhibits these patterns.

When I first learned the word at school it was in the context of CMYK printing where colors where printed under precise angles to prevent moire patterns.

We don't print as much as we used to but interference patterns are never far away. These are some nice CSS backgrounds showing off moire.

With CSS gradients there are three types we can use and combine to generate lines.
There is repeating-linear-gradient for straight perpendicular lines. repeating-radial-gradient to create circles and ovals. And repeating-conic-gradient to create lines that radiate from a center.

The gradients are defined in such a way that we get hard lines, ie: #FF0 0% 1%, transparent 1% 2%.

On smaller scales the patterns go a bit beyond mere line interference. At a certain point it goes into the realm of pixels, antialising and floating point rounding.
Which is where it becomes more glitch-art than moire.

One small pity is that in the world of browsers we really have only two: Gecko and Blink. Gecko is the render engine used in Firefox, and sadly Blink is the one used in everything else.
In terms of rendering CSS gradients Gecko does a much better job and shows much more interesting artifacts at low scales. It even displays self-replication in some cases. Whereas Blink just floodfills the element at some point.

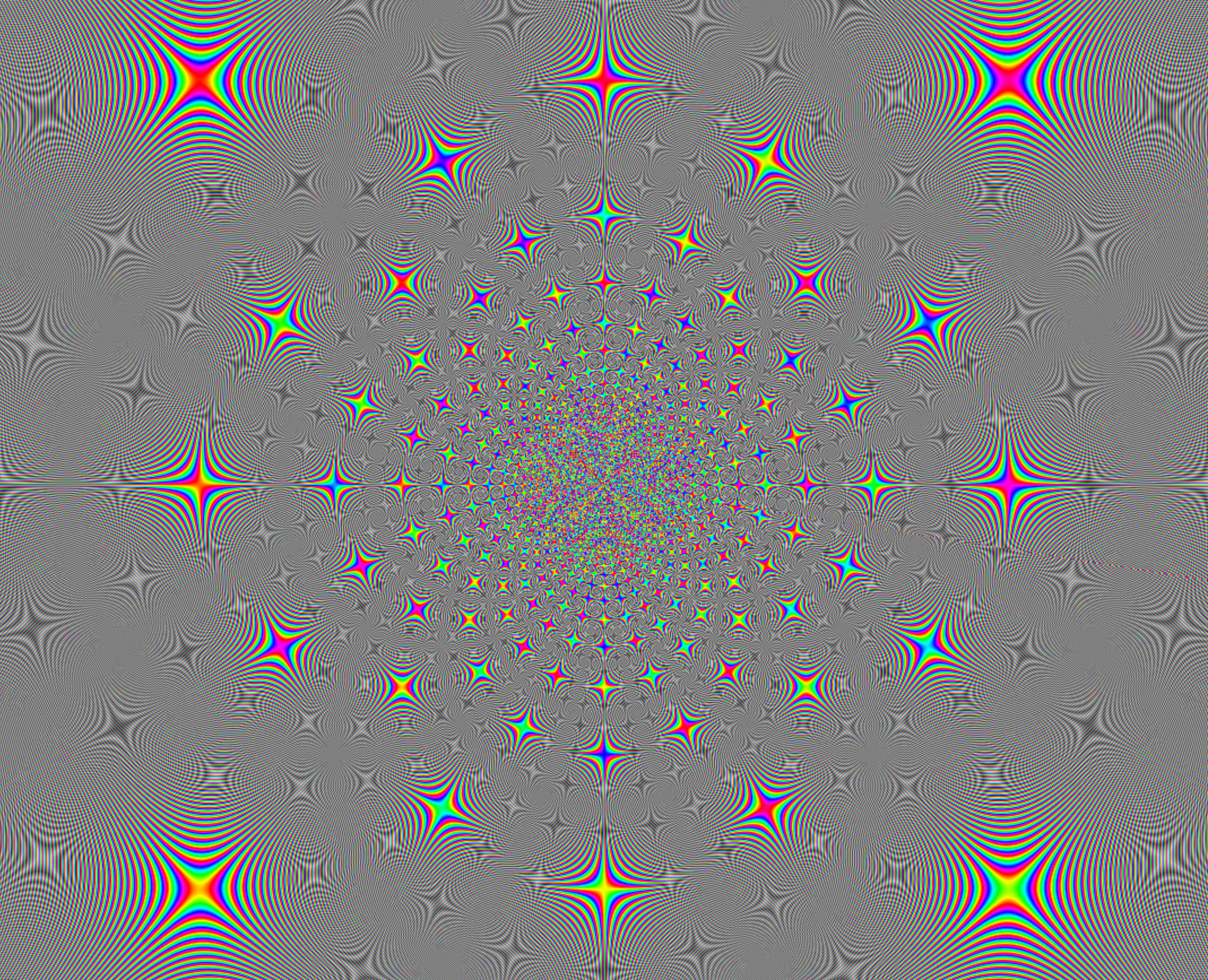

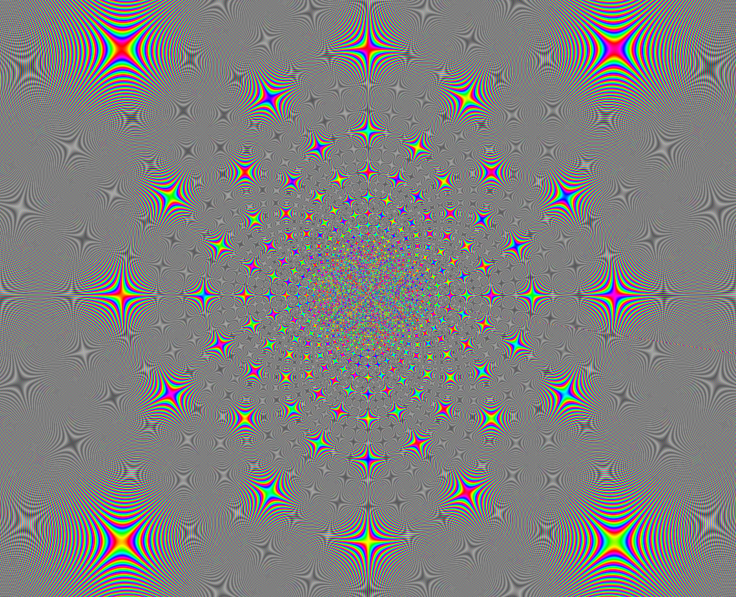

So here is a screenshot for all you unbelievers. This is a conical gradient with about onehundred repeats.

As always: here's some source:

/**
 * Moire glitch
 * @module experiment/moire
 * @see module:experiment/base
 */
import experiment from './base'
import {noise} from '../math/perlin'

let main
let mainStyle
let form

const inst = experiment('moire', {
  init
  , handleAnimate
})
const {zuper} = inst

function init(_target){
  initWrapper(_target)
  initStyle(_target)
  zuper.init(_target).remove()
}

function initWrapper(root){

  main = element('label',root,{class:'moire',for:'ui'})
  mainStyle = main.style

  element('input',main,{type:'checkbox',id:'ui'})

  form = element('form',main,null,{input:onFormInput,change:onFormChange})

  ;['clr','bclr'].forEach((name,i)=>{
    element('input',form,{name,type:'color',value:['white','black'][i]})
  })

  element('br',form)

  const name = 'type'
  const type = 'radio'
  ;[
    'yellow'
    ,'one'
    ,'lines'
    ,'matrix'
    ,'circles'
    ,'petals'
    ,'bulge'
    ,'corner'
    ,'rainbow'
  ].forEach(value=>{
    const label = element('label',form,{class:'label-'+value})
    element('input',label,{name,value,type})
  })

  element('br',form)

  const min = 0
  const max = 1
  const step = 0.001
  ;['part','total'].forEach(name=>{
    const range = element('input',form,{name,type:'range',min,max,step})
    range.dispatchEvent(new Event('input'), { bubbles: true })
    element('br',form)
  })

  initLocation(form)

}

function initLocation(form){
  try {
    const {hash} = location
    const data = tryParse(
      decodeURIComponent(hash.substring(1))
      ,{
        clr: '#ff0044'
        ,bclr: '#000000'
        ,type: 'bulge'
        ,total: 0.9
        ,part: 0.5
      }
    )
    Object.entries(data).forEach(([name,value])=>{
      form[name].value = value
      setValue(name,value)
    })
  }catch(err){
    alert(err)
  }
}

function initStyle(root){
  const style = document.createElement('style')
  style.textContent = getStyle()
  root.appendChild(style)
}

// function initEvents(){
//   animate.add(onAnimate)
// }
//
// function exit(){
//   while (root.children.length) root.firstChild.remove()
//   animate.remove(onAnimate)
// }

function onFormChange(e){
  const {target: {name, value}} = e
  setValue(name,value)
  setData()
}

function onFormInput(e){
  const {target: {name, value}} = e
  setValue(name,value)
}

let start
function handleAnimate(deltaT,millis){
  start||(start=millis)
  const speed = 0.0005
  const elapsed = millis-start
  setCSSProp('t', elapsed)
  setCSSProp('sin', Math.sin(speed*elapsed))
  setCSSProp('cos', Math.cos(speed*elapsed))
  setCSSProp('x', noise(speed*elapsed,3876.13))
  setCSSProp('y', noise(speed*elapsed,999.123))
}

function element(type, prnt, atts, evts) {
  const elm = document.createElement(type)
  atts&&Object.entries(atts).forEach(([name,value])=>elm.setAttribute(name,value))
  evts&&Object.entries(evts).forEach(([name,value])=>elm.addEventListener(name,value))
  prnt&&prnt.appendChild(elm)
  return elm
}

function setValue(name,value){
  //alert(name+value)
  name==='type'
    ?setMainClass(value)
    :setCSSProp(
      name
      ,['clr','bclr','part'].includes(name)
        ?value
        :easeInCirc(easeInCirc(value))
    )
}

function setMainClass(value){
  main.setAttribute('class', 'moire '+value)
}

function setCSSProp(name, value) {
  mainStyle.setProperty(`--${name}`, value)
}

function easeInCirc(x) {
  return 1 - Math.sqrt(1 - Math.pow(x, 2))
}

function setData(){
  const object = {}
  const formData = new FormData(form)
  formData.forEach((value, key) => object[key] = value)
  location.hash = JSON.stringify(object)
}

function tryParse(s,data={}){
  try {
    data = JSON.parse(s)
  } catch(err){}
  return data
}

////////

export const moire = inst.expose

function getStyle(){
  return `
:root {
  --start: 0.4deg;
  --end: 2deg;
  --clr: white;
  --bclr: black;
  --t: 0;
  --sin: 0;
  --cos: 1;
  --x: 1;
  --y: 1;
  --part: 0.1;
  --total: 1;
  --min: min(100vw,100vh);
  --max: max(100vw,100vh);
}

.moire {
  display: block;
  width: 100%;
  height: 100%;
  padding: 1rem;
}

.moire #ui {
  opacity: 0;
}
.moire #ui:not(:checked) + form {
  display: none;
}

/*/////////////////////////////////*/

::-webkit-color-swatch,
::-moz-color-swatch {
  border-color: transparent;
}
.moire input[type=color] {
  display: inline-block;
  width: 2rem;
  height: 2rem;
  padding: 0;
  margin: 0 0.25rem 0.5rem 0;
  border: 2px solid var(--bclr);
}
.moire input[name=bclr] {
  border: 2px solid var(--clr);
}

.moire label {
  display: inline-block;
  width: 2rem;
  height: 2rem;
  background: linear-gradient(black,white);
  border-radius: 50%;
  margin: 0.5rem 0.25rem 0.5rem 0;
  background-color: var(--bclr);
  box-shadow: 0 0 0 2px var(--bclr) inset;
}
.moire label input {
  opacity: 0;
}






.moire input[type=range] {
  width: 100%;
  background: transparent;
  margin: 0.5rem auto;
  -webkit-appeareance: none;
}
.moire input[type=range]::-moz-range-track,
.moire input[type=range]::-webkit-slider-runnable-track {
  background: var(--bclr);
  border: 2px solid var(--clr);
}
.moire input[type=range]::-moz-range-thumb,
.moire input[type=range]::-webkit-slider-thumb {
  background: var(--clr);
  border: 2px solid var(--bclr);
  border-radius: 50%;
}
.moire input[type=range]:focus::-webkit-slider-runnable-track {
}






.moire .label-yellow {
  background: repeating-conic-gradient(
    var(--clr) 0 10%,
    var(--bclr) 10% 20%
  );
}
.moire.yellow {
  --end: calc(var(--total)*36deg);
  --start: calc(var(--part)*var(--end));
  background: repeating-conic-gradient(
    from calc(0.0001deg*var(--t)) at 50% 50%,
    var(--clr) 0deg var(--start),
    var(--bclr) var(--start) var(--end)
  );
}

.moire .label-circles {
  background: repeating-radial-gradient(
    circle at 80% 20%,
    var(--clr) 0 5%,
    transparent 5% 20%
  ),repeating-radial-gradient(
    circle at 20% 80%,
    var(--clr) 0 5%,
    var(--bclr) 5% 20%
  );
}
.moire.circles {
  --tt: calc(var(--t)*0.0001deg);
  --radial-total: calc(20%*var(--total));
  --radial-part: calc(var(--part)*var(--radial-total));
  --clr: rgba(255,255,255,1);
  background: repeating-radial-gradient(
    circle at calc(100%*var(--x)) calc(100%*var(--y)),
    var(--clr) 0 var(--radial-part),
    transparent var(--radial-part) var(--radial-total)
  ),repeating-radial-gradient(
    circle at 50% 50%,
    var(--clr) 0 var(--radial-part),
    var(--bclr) var(--radial-part) var(--radial-total)
  );
}

.moire .label-rainbow {
  --p: calc(100%/18);
  background: repeating-conic-gradient(
    #00F 0,
    #F0F calc(1*var(--p)),
    #F00 calc(2*var(--p)),
    #FF0 calc(3*var(--p)),
    #0F0 calc(4*var(--p)),
    #0FF calc(5*var(--p)),
    #00F calc(6*var(--p))
  );
}
.moire.rainbow {
  --end: calc(var(--total)*36deg);
  --p: calc(var(--end)/6);
  --tt: calc(0.01deg*var(--part)*var(--total)*var(--t));
  background: repeating-conic-gradient(
    from var(--tt) at 50% 50%,
    #00F 0,
    #F0F calc(1*var(--p)),
    #F00 calc(2*var(--p)),
    #FF0 calc(3*var(--p)),
    #0F0 calc(4*var(--p)),
    #0FF calc(5*var(--p)),
    #00F var(--end)
  );
}

.moire .label-matrix {
  --p: 0.866;
  --end: 20deg;
  --part: 0.2;
  --start: calc(var(--part)*var(--end));
  background: repeating-conic-gradient(
    from 0 at calc(50% - 2rem) 50%,
    var(--clr) 0 var(--start),
    transparent var(--start) var(--end)
  ), repeating-conic-gradient(
    from 0 at calc(50% + 2rem) 50%,
    var(--clr) 0 var(--start),
    transparent var(--start) var(--end)
  ), repeating-conic-gradient(
    from 0 at 50% calc(50% + var(--p)*2rem),
    var(--clr) 0 var(--start),
    var(--bclr) var(--start) var(--end)
  );
}
.moire.matrix {
  --p: 0.866;
  --tt: calc(var(--t)*0.001deg);
  --end: calc(var(--total)*20deg);
  --start: calc(var(--part)*var(--end));
  background: repeating-conic-gradient(
    from var(--tt) at calc(50% - var(--min)) 50%,
    var(--clr) 0 var(--start),
    transparent var(--start) var(--end)
  ), repeating-conic-gradient(
    from var(--tt) at calc(50% + var(--min)) 50%,
    var(--clr) 0 var(--start),
    transparent var(--start) var(--end)
  ), repeating-conic-gradient(
    from calc(-1*var(--tt)) at 50% calc(50% + var(--p)*var(--min)),
    var(--clr) 0 var(--start),
    var(--bclr) var(--start) var(--end)
  );
}

.moire .label-one {
  background: repeating-radial-gradient(
    var(--clr) 0 10%,
    var(--bclr) 10% 20%
  );
}
.moire.one {
  --tt: calc(var(--t)*0.0001deg);
  --radial-total: calc(50%*var(--total));
  --radial-part: calc(var(--part)*var(--radial-total));
  background: repeating-radial-gradient(
    circle at calc(50% + 0.1%*var(--sin)) calc(50% + 0.1%*var(--cos)),
    var(--clr) 0 var(--radial-part),
    var(--bclr) var(--radial-part) var(--radial-total)
  );
}

.moire .label-lines{
  background: repeating-linear-gradient(
    30deg,
    var(--clr) 0% 10%,
    var(--bclr) 10% 20%
  );
}
.moire.lines{
  --tt: calc(var(--t)*0.0001deg);
  --radial-total: calc(10%*var(--total));
  --radial-part: calc(var(--part)*var(--radial-total));
  background: repeating-linear-gradient(
    var(--tt),
    var(--clr) 0% var(--radial-part),
    var(--bclr) var(--radial-part) var(--radial-total)
  );
}

.moire .label-petals{
  background: repeating-conic-gradient(
    var(--clr) 0 4%,
    transparent 4% 10%
  )
  ,repeating-linear-gradient(
    30deg,
    var(--clr) 0% 5%,
    var(--bclr) 5% 15%
  );
}
.moire.petals{
  --tt: calc(var(--t)*0.0001deg);
  --radial-total: calc(6%*var(--total));
  --radial-part: calc(var(--part)*var(--radial-total));
  --end: calc(var(--total)*20deg);
  --start: calc(var(--part)*var(--end));
  background: repeating-conic-gradient(
    from calc(0.0001deg*var(--t)) at calc(180%*var(--x) - 40%) calc(180%*var(--y) - 40%),
    var(--clr) 0deg var(--start),
    transparent var(--start) var(--end)
  ),repeating-linear-gradient(
    calc(var(--t)*-0.001deg),
    var(--clr) 0% var(--radial-part),
    var(--bclr) var(--radial-part) var(--radial-total)
  );
}

.moire .label-bulge{
  background: repeating-conic-gradient(
    var(--clr) 0 4%,
    transparent 4% 10%
  )
  ,repeating-radial-gradient(
    var(--clr) 0% 5%,
    var(--bclr) 5% 12%
  );
}
.moire.bulge{
  --radial-total: calc(20%*var(--total));
  --radial-part: calc(var(--part)*var(--radial-total));
  --end: calc(var(--total)*36deg);
  --start: calc(var(--part)*var(--end));
  background: repeating-radial-gradient(
    circle at calc(180%*var(--x) - 40%) calc(180%*var(--y) - 40%),
    var(--clr) 0% var(--radial-part),
    transparent var(--radial-part) var(--radial-total)
  ), repeating-conic-gradient(
    from calc(0.0001deg*var(--t)) at 50% 50%,
    var(--clr) 0deg var(--start),
    var(--bclr) var(--start) var(--end)
  );
}

.moire .label-corner{
  background: repeating-linear-gradient(
    30deg,
    var(--clr) 0% 5%,
    transparent 5% 12%
  )
  ,repeating-radial-gradient(
    var(--clr) 0% 5%,
    var(--bclr) 5% 12%
  );
}
.moire.corner{
  --radial-total: calc(20%*var(--total));
  --radial-part: calc(var(--part)*var(--radial-total));
  --radiall-total: calc(10%*var(--total));
  --radiall-part: calc(var(--part)*var(--radiall-total));
  background: repeating-radial-gradient(
    circle at calc(50%*var(--x) + 25%) calc(50%*var(--y) + 25%),
    var(--clr) 0% var(--radial-part),
    transparent var(--radial-part) var(--radial-total)
  ), repeating-linear-gradient(
    calc(var(--t)*-0.001deg),
    var(--clr) 0% var(--radiall-part),
    var(--bclr) var(--radiall-part) var(--radiall-total)
  );
}







  `
}
